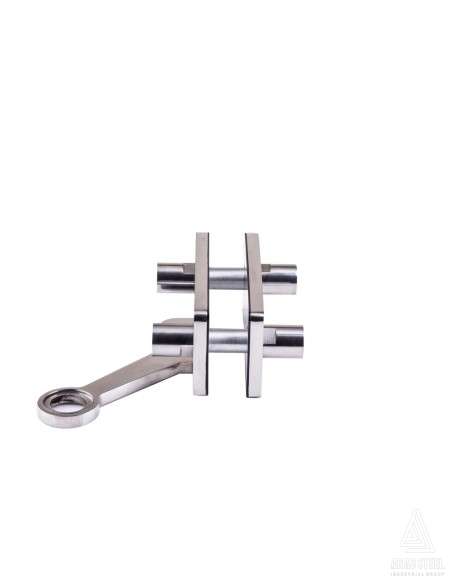

One-Way 90-degree Spider with Fin-s800-front view

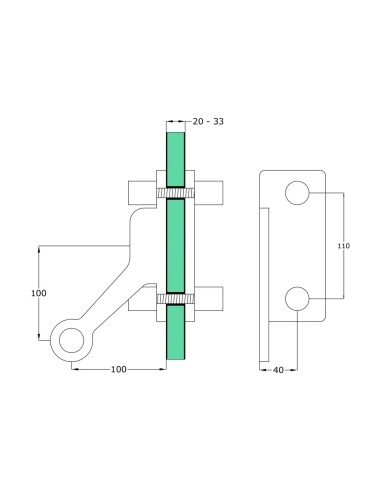

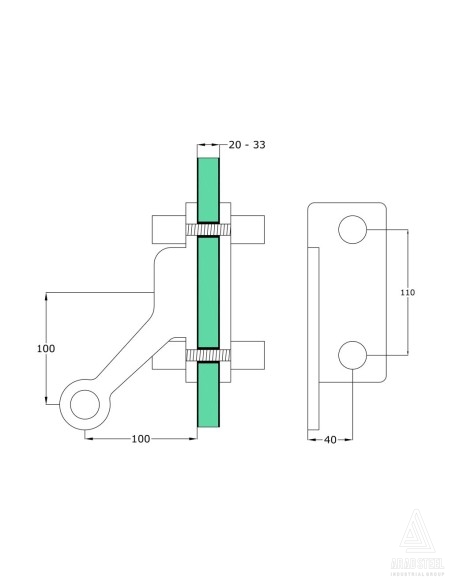

One-Way 90-degree Spider with Fin-s800 - technical specification

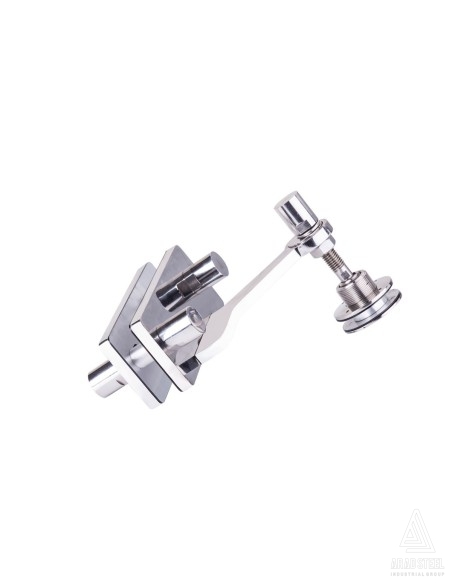

One-Way 90-degree Spider with Fin-s800 - assembled
One-Way 90-degree Spider with Fin-s800-front view
One-Way 90-degree Spider with Fin-s800 - technical specification
One-Way 90-degree Spider with Fin-s800 - assembled

One-Way 90-degree Spider with Fin-s800

  • Premium construction with exceptional mechanical and corrosion properties
  • Stainless steel options: 304 and 316
  • Compatible with glass fines ranging from 20mm to 33mm in thickness
  • Seamless integration with our routels for a flawless connection
  • Convenient installation with pre-drilled 25mm hole for glass fines
  • Specifically designed for installation at the corners of glass facades
Material
Finishing
s800
$46.70

Description

Glass Spider with Fin is a key component in enhancing the visual appeal and structural integrity of glass facades with fins. These spider connectors seamlessly connect and support glass fins, adding a modern and sophisticated touch to architectural designs. Arad Steel is a leading provider of stainless steel fittings for glass facades, offering a comprehensive range of products tailored to meet various project requirements.

At Arad Steel, we pride ourselves on producing fittings of the highest quality. Our extensive selection includes stainless steel 304 and 316 options, known for their exceptional strength and corrosion resistance. By utilizing these premium materials, we ensure that our fittings deliver outstanding durability and longevity, even in challenging environments.

One of our notable offerings is the One-Way 90-degree Spider with Fin. This fitting is specifically designed for glass facades where the fins are installed on the sides and require support at corners. The One-Way 90-degree Spider with Fin seamlessly integrates with the glass fins, providing stability and enhancing the overall aesthetics of the facade.

Choose Arad Steel as your trusted partner for all your glass facade fitting needs. With our commitment to excellence and a wide range of high-quality products, we guarantee solutions that meet your specific requirements and surpass your expectations.

Product Details

Brand
Arad Steel
Material
Stainless Steel 304
Stainless Steel 316
Surface Finishing
Brushed
Mirror
